Move With Precision

Ultra-integrated harmonic drive actuators. Motor, reducer, encoder, and drive — in one compact module.

4.5–107 Nm EtherCAT / CAN <1 arcmin backlash 14 models 2–5 day samples
Explore Models Get Datasheet
14
Models
<1′
Backlash
24h
Response Time
Product Lineup

Robot Joint Modules. Four Series.

Factory-direct integrated joint modules: harmonic rotary, six-in-one PRO, planetary rotary and linear. Each integrates motor, reducer, dual encoders and driver in one sealed unit.

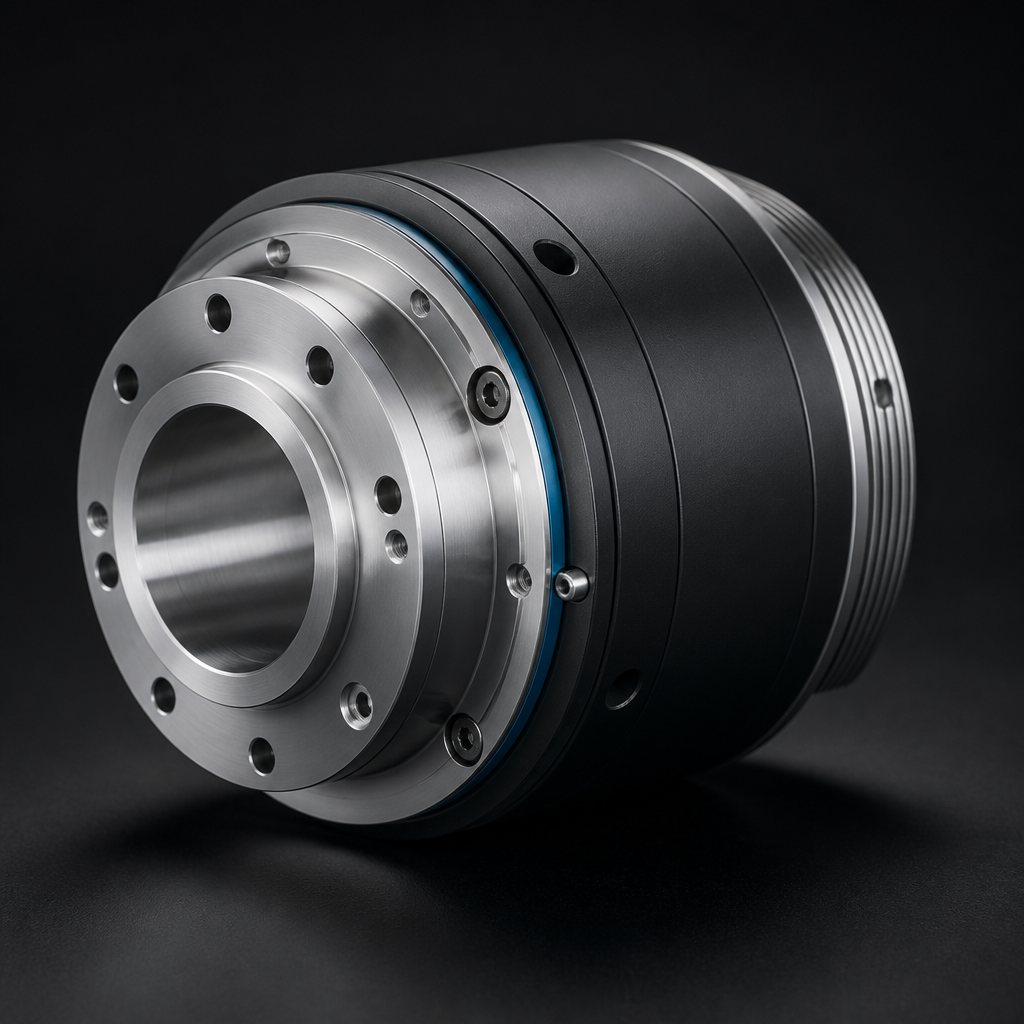

Harmonic Rotary Joint Modules 5 models

Harmonic Rotary Joint Modules

Precision harmonic rotary joints from 4.5 to 107 Nm with built-in driver, 17-bit dual abso...

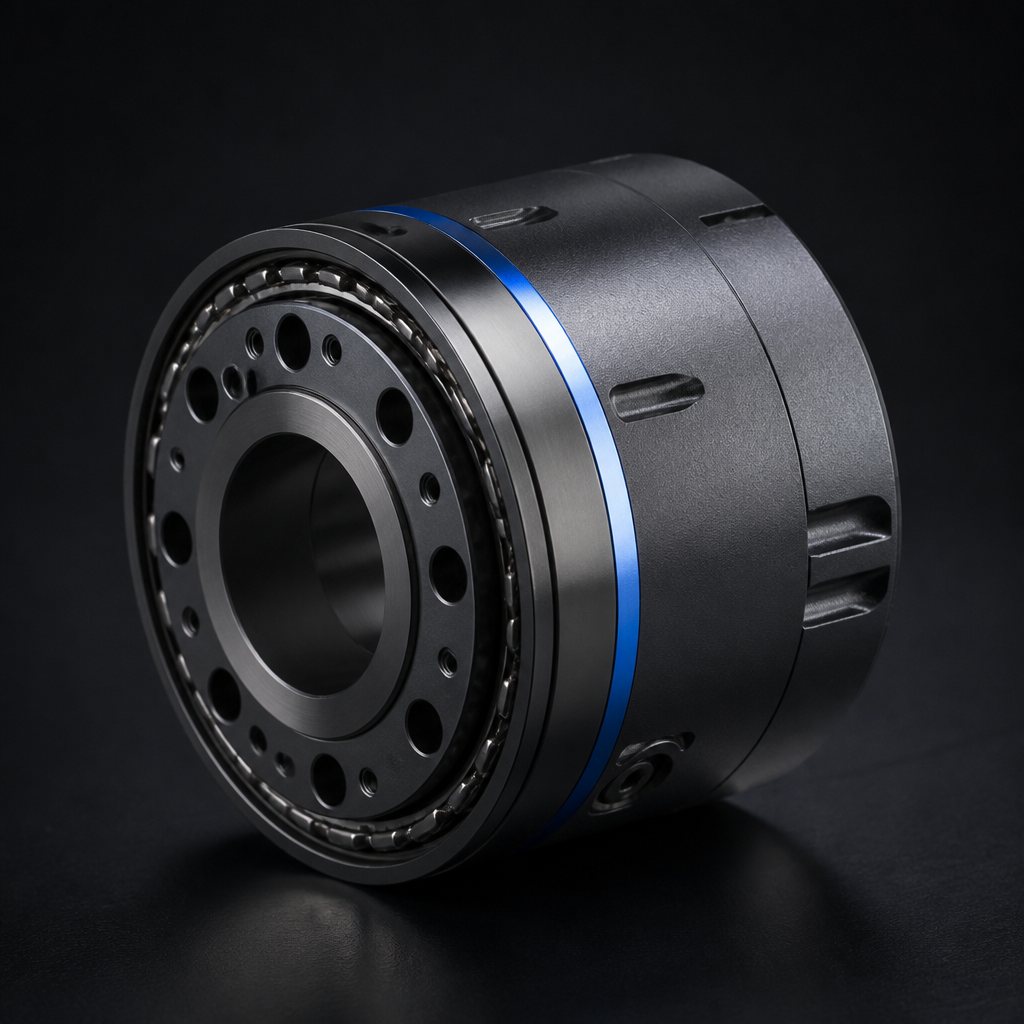

 Harmonic Joint Modules PRO 3 models

Harmonic Joint Modules PRO

Six-in-one PRO joints: motor, reducer, driver, encoders, optional brake and torque sensor....

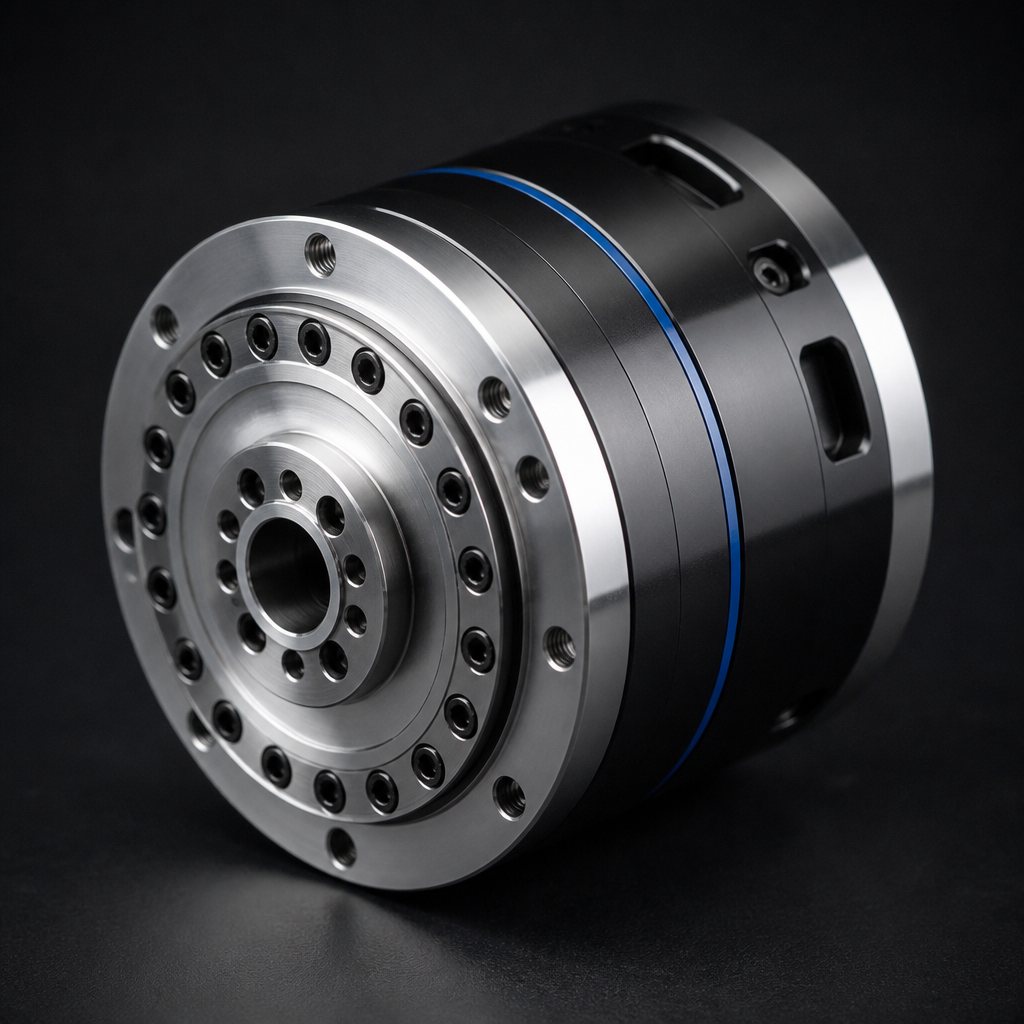

 Planetary Rotary Joint Modules 3 models

Planetary Rotary Joint Modules

Efficient (≥85%) planetary rotary joints from 10 to 40 Nm, dual encoders, ±0.1° repeatabil...

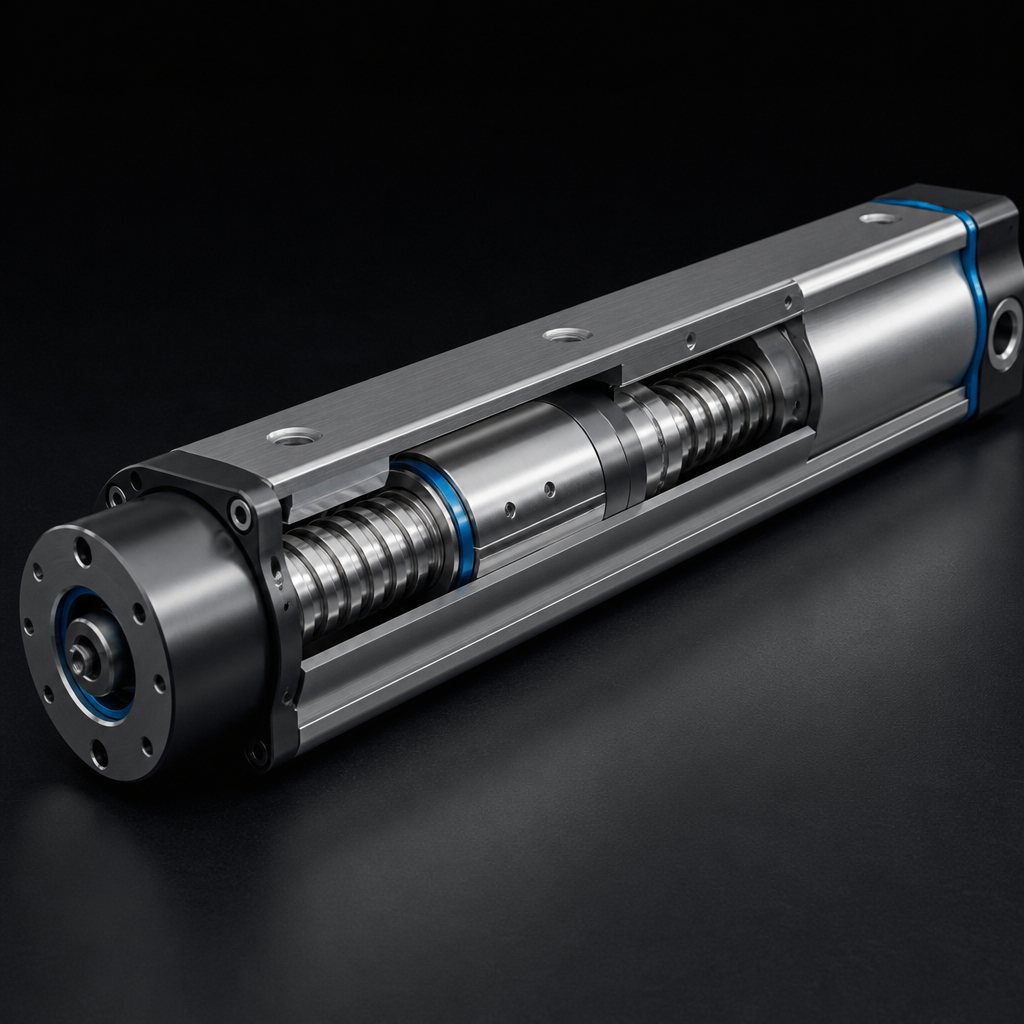

 Linear Joint Modules 3 models

Linear Joint Modules

Inverted planetary roller screw linear joints: 880-1100 N thrust, ±0.02 mm repeatability, ...
View Full Catalog
Industries & Applications

Where Our Actuators Work

From collaborative arms to surgical robots — PlaPivot harmonic joint modules power demanding applications across industries that demand precision, reliability, and compact integration.

Collaborative Robots

Ultra-low backlash and smooth torque control for safe human-robot collaboration. PP-08 to PP-20 cover cobot shoulder, elbow, and wrist joints at payloads from 2kg to 15kg.

PP-08 PP-11 PP-14

Industrial Robot Arms

High-rigidity cross-roller bearings for heavy payloads, welding, palletizing, and CNC tending. PP-17 to PP-20 deliver up to 107 Nm with integrated safety brakes for 24/7 duty cycles.

PP-17 PP-20 PP-80-PRO

Medical & Surgical Robots

Sterile, zero-backlash motion for surgical assistants and rehabilitation exoskeletons. PP-08 and PP-11 offer sub-arc-minute positioning with smooth velocity control for compact instrument axes.

PP-08 PP-11 PP-14

Agricultural & Field Robotics

IP-rated dust and moisture resistance for autonomous harvesting, spraying, and field monitoring. PP-14 to PP-20 are rated for outdoor environments with wide temperature tolerance.

PP-14 PP-17 PP-20

Humanoid & Service Robots

Compact, lightweight actuators for humanoid arms, legs, and end effectors. The PP-08 ultra-compact profile and integrated driver reduce limb inertia while delivering sufficient joint torque.

PP-08 PP-11 PP-10G

Research & Education

Open EtherCAT/CANopen protocol for rapid prototyping and academic robotics labs. Small minimum order, full datasheets, and engineering support for university research teams worldwide.

PP-08 PP-10G PP-20L
Client Feedback

Trusted by Engineers

★★★★★

"The PP-14 replaced our previous joint assembly entirely. Integration took less than a day, and the backlash spec is genuinely sub-arc-minute. Outstanding value."

MK
Michael K.
CTO
★★★★★

"We evaluated 5 suppliers before choosing PlaPivot. The factory-direct pricing and 24-hour engineering response time sealed the deal. 500 units ordered, zero failures."

SL
Sarah L.
Procurement Lead
★★★★★

"The EtherCAT integration was seamless. PlaPivot provided custom firmware for our protocol and delivered samples in 10 days. This is how B2B should work."

JT
James T.
Systems Engineer
★★★★★

"We put the PP-20 through a 2000-hour continuous duty cycle and measured zero drift. Build quality is exceptional — the housing tolerances and bearing preload are clearly done right at the factory."

DR
David R.
Head of R&D
★★★★★

"Their application engineers walked us through torque sizing, thermal derating curves, and even helped optimize our robot arm kinematics. Deep technical knowledge that you rarely find from a supplier."

AW
Anna W.
Robotics Engineer
★★★★★

"Every module arrived with a full QC test report — torque accuracy, backlash measurement, encoder resolution — all within spec. When we needed a DIN rail mounting adapter, they had a custom drawing back to us in under 48 hours."

PC
Pierre C.
Production Engineer
FAQ

Common Questions

What is the lead time for standard models? ▼
Standard models across all four series ship within 2-4 weeks. Sample units can be dispatched within 10 business days. Custom configurations (voltage, ratio, mounting) require 4-6 weeks.
Do you provide CAD models and technical drawings? ▼
Yes. STEP and SolidWorks files are available for all models. Detailed technical drawings with tolerances are included with every quotation. Request them via the contact form below.
What is the minimum order quantity (MOQ)? ▼
No MOQ for standard models — we accept single-unit sample orders. Volume discounts start at 10 units. For OEM partnerships, we offer dedicated production lines and priority scheduling.
Can you customize the communication protocol? ▼
Standard protocols are EtherCAT and CANopen. Custom firmware (RS485, Modbus, proprietary protocols) is available for orders of 50+ units. Our engineering team handles integration support.
What certifications do your modules carry? ▼
All modules are CE certified and manufactured under ISO 9001 quality management. RoHS compliance is standard. Additional certifications (UL, etc.) available upon request for volume orders.
Do you offer warranty and after-sales support? ▼
Standard 12-month warranty covering manufacturing defects. Extended 24-month warranty available. Technical support via email within 24 hours. Replacement units shipped within 5 business days for warranty claims.
Get In Touch

Start Your Project Today

Tell us about your application. Our engineering team will respond with a tailored quotation and technical recommendation within 24 hours.
